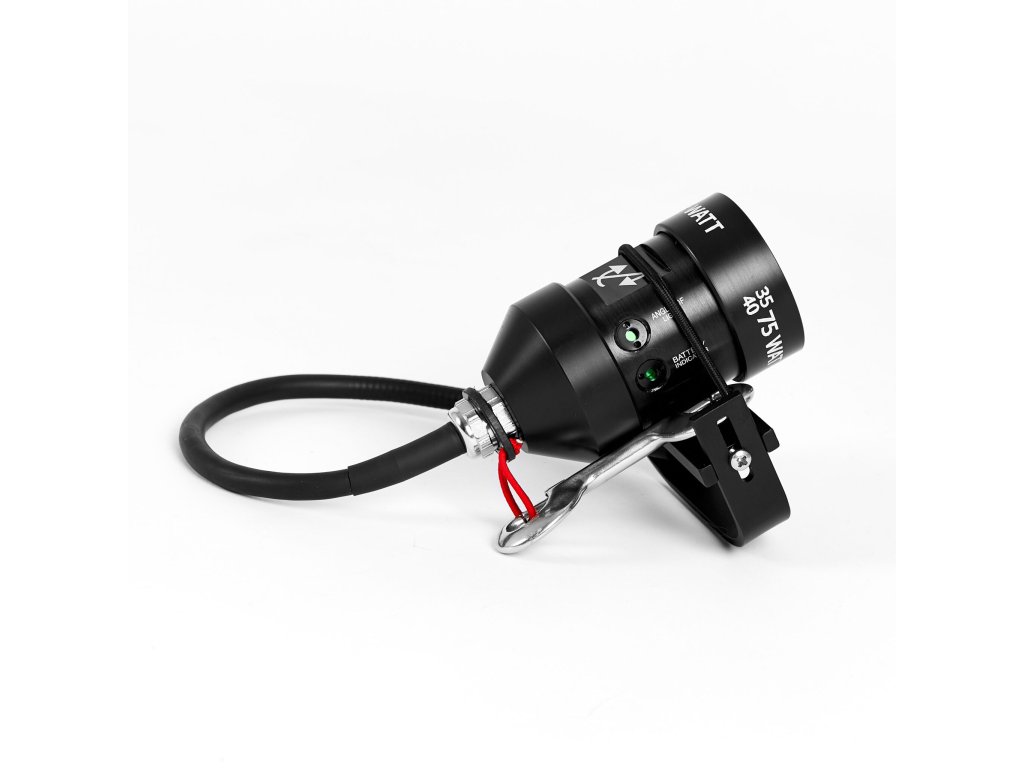

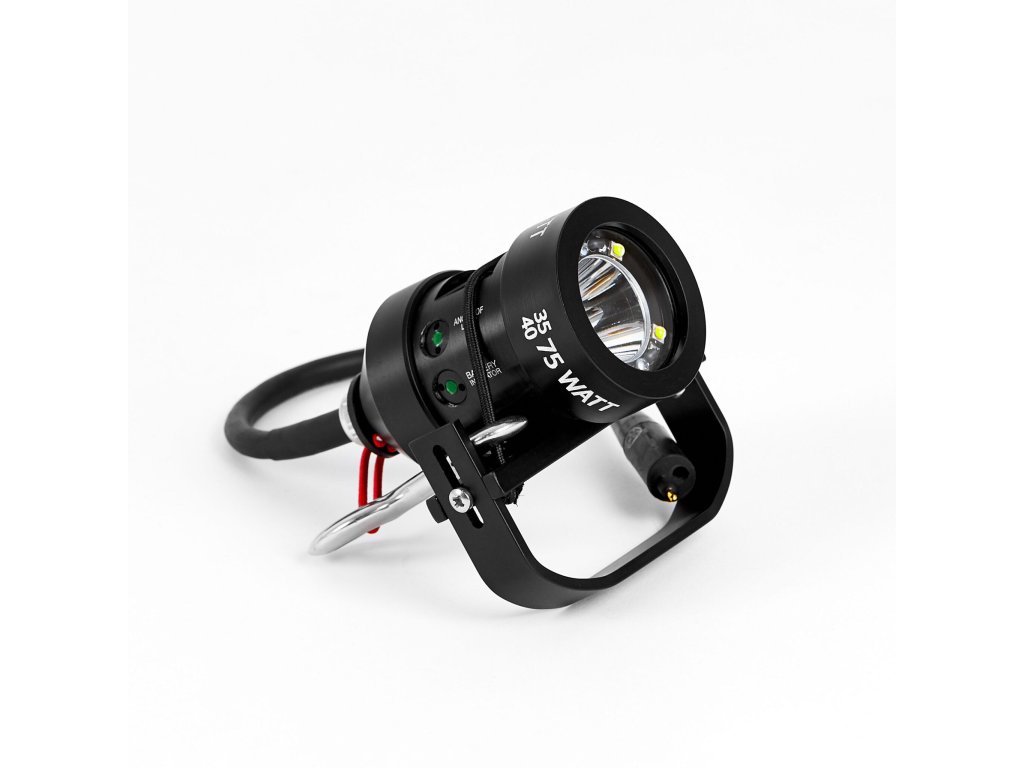

Yellow Diving LED 75W Regulated Diving Light Head

The light head is made from durable anodized aluminum and Delrin, and has compact dimensions of 10.5 cm (length) x 6.3 cm (diameter). The design includes a Goodman handle, which is wide enough for comfortable use with dry gloves in cold water. The light also features a battery indicator to display the current charge level.

This diving light operates with a backmount configuration and is compatible with battery packs ranging from 15.6Ahto 42Ah. The system includes a classic toggle switch and a 1m standard cable, with the option for a custom length or E/O cord configuration. It is fully certified with UN38.3 and remains water-tight up to 150m depth.

The light head’s integrated electronics allow the use of the same battery canister to power both the light and Yellow Diving electric heating systems. The banana connectors between the battery pack and the canister cover make setup and storage easier, allowing the canister cover to be secured in either the connected or disconnected position, enhancing safety during transport. The system remains fully water-tight to 150m.

LIGHT HEAD

• Power with 3-step regulation: 35W/40W/75W(35+40)
• Light angle: 12°/120°
• Colour temperature: 6500°K
• Luminance: 8000lm
• Battery indicator: displays the current battery charge level
• Angles of light:  shows a different angle of light beam
• E/O cord: 35cm or according to customer requirements
• Head dimensions (L x D): 10,5 cm x 6,3 cm
• Made of: anodised aluminium, Delrin

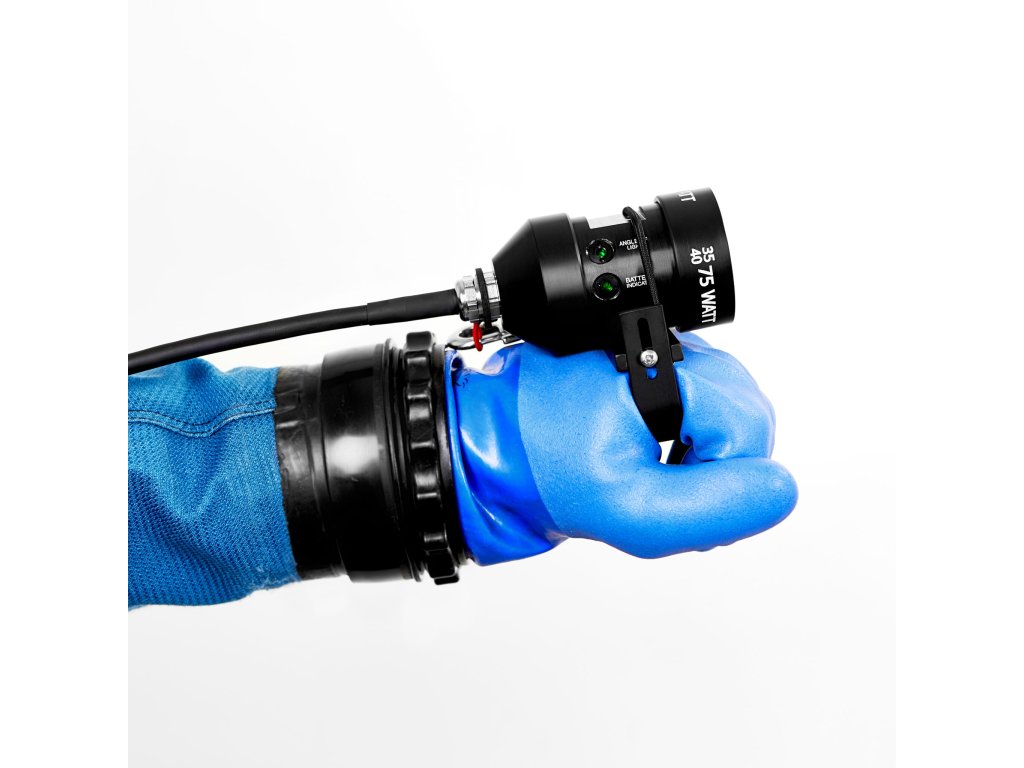

• Type of handle: Goodman
• Max. operating depth: 150m

The “Light Angle” indicator shows the active light beam angle and is also located on the right side of the head. The light modes can operate both independently or together, with the LED indicator showing the current mode:

• Green: 35W at 12° beam angle
• Red: 40W at 120° beam angle
• Yellow: 75W (both modules combined)

You can easily switch between modes using the on/off switch. After turning the light off, you have 5 seconds to turn it back on to change the mode. If the light remains off for longer than 5 seconds, it will automatically revert to its default mode (35W at 12°) when turned on again.

The LED indicator, labelled „LED Indicator,” is located on the right side of the head. This indicator shows the battery’s performance status and provides real-time information about the remaining battery capacity.

When the battery is turned on, the LED indicator displays one of the following statuses:

• Green (steady): 100% – 16% charge remaining
• Red (steady): 15% – 6% charge remaining
• Red (flashing): 5% – 0.1% charge remaining
